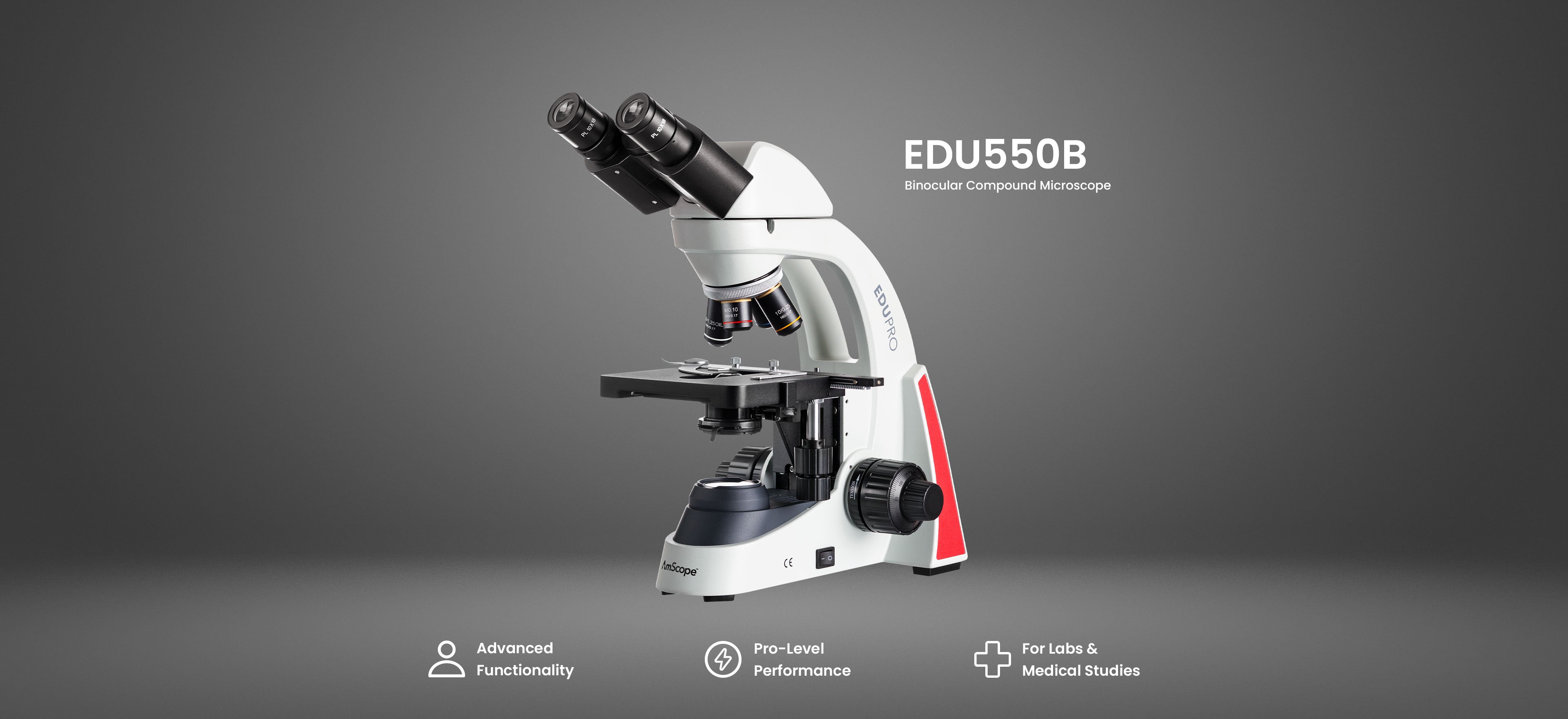

🔬 Optical and Imaging Capabilities
- Optical System: Finite.

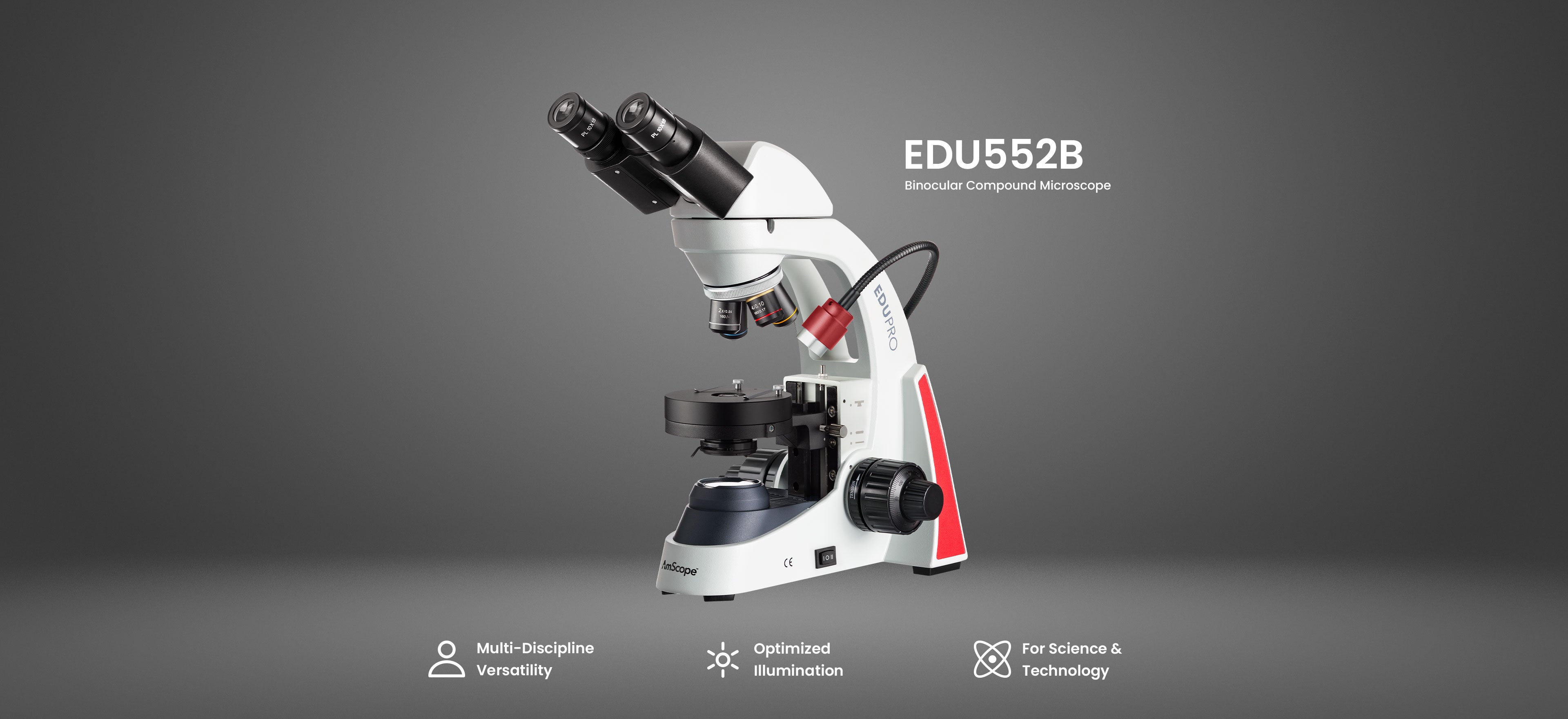

- Head: Binocular, 30° incline — ergonomic viewing for extended sessions.
- Eyepieces: 10X, FN 18mm, 23.2mm mount — clear image with wide field of view and accessory compatibility.

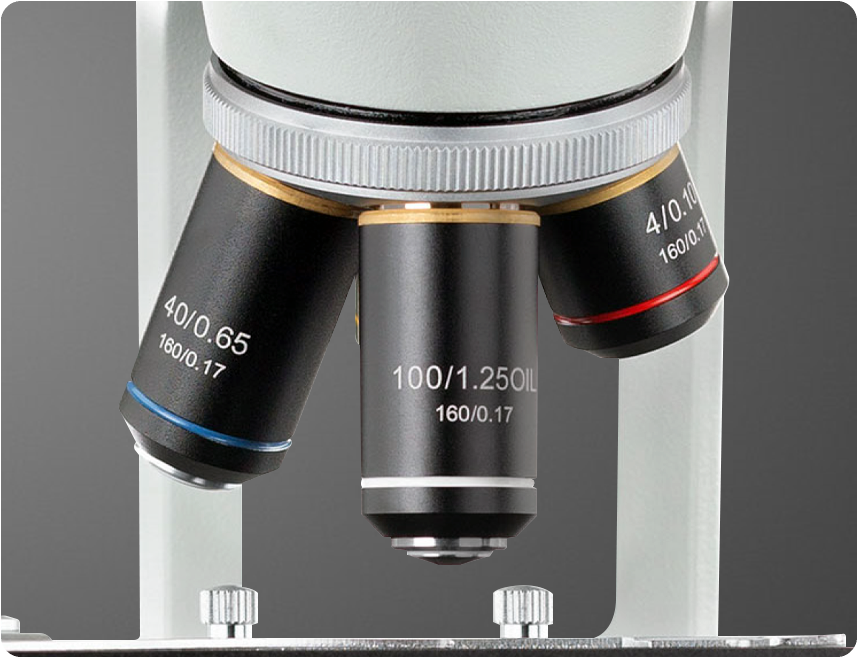

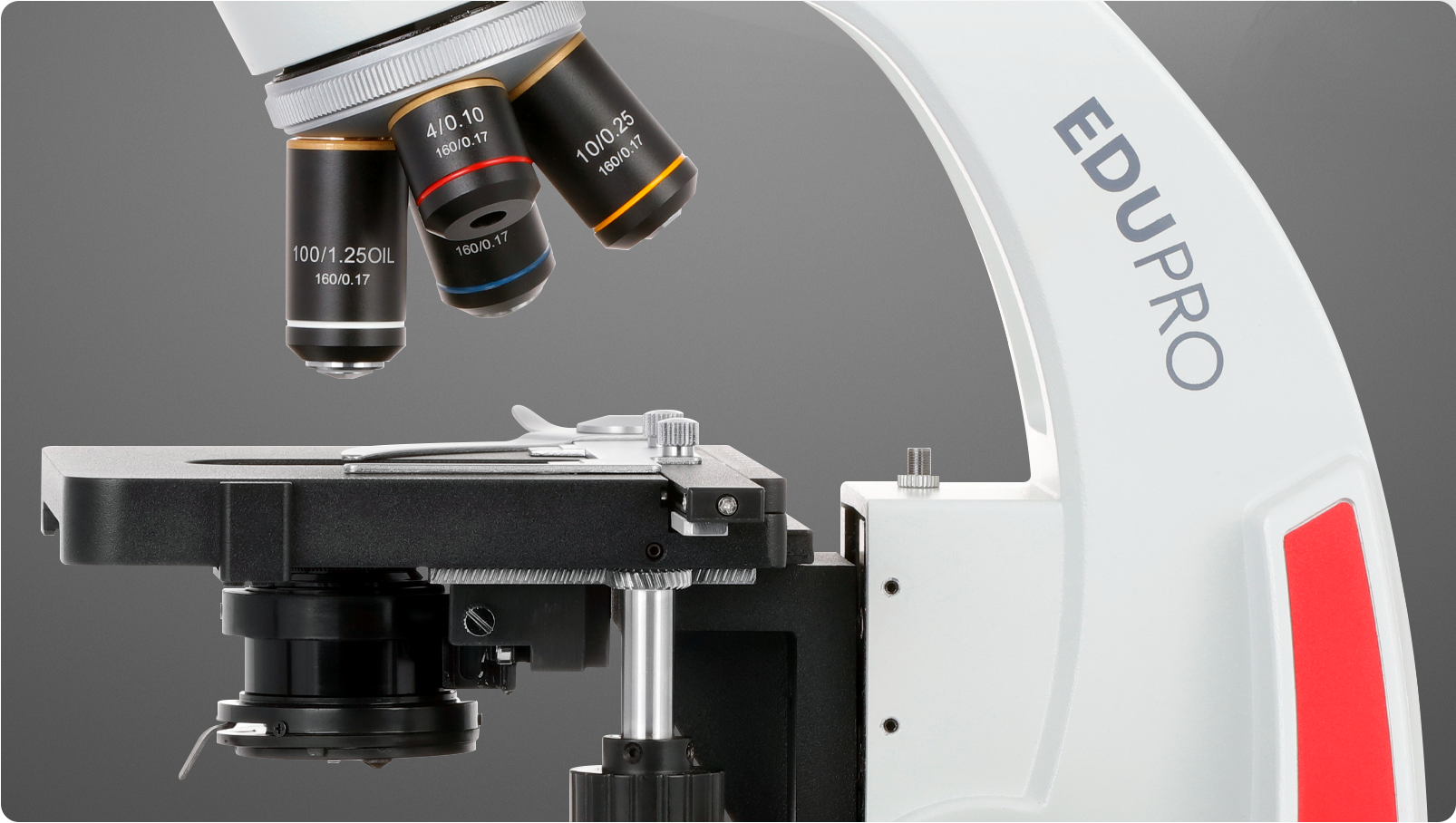

- Objective Lenses: 4X, 10X, 40X (spring-loaded), 100X (oil immersion, spring-loaded). Covers standard magnification range for biological applications.
- Nosepiece: Quadruple reversed — allows fast and clear objective switching.
- Interpupillary Adjustment: 48–75mm, compensation-free Siedentopf — customizable for different users.
⚙️ Mechanical & Stage Control

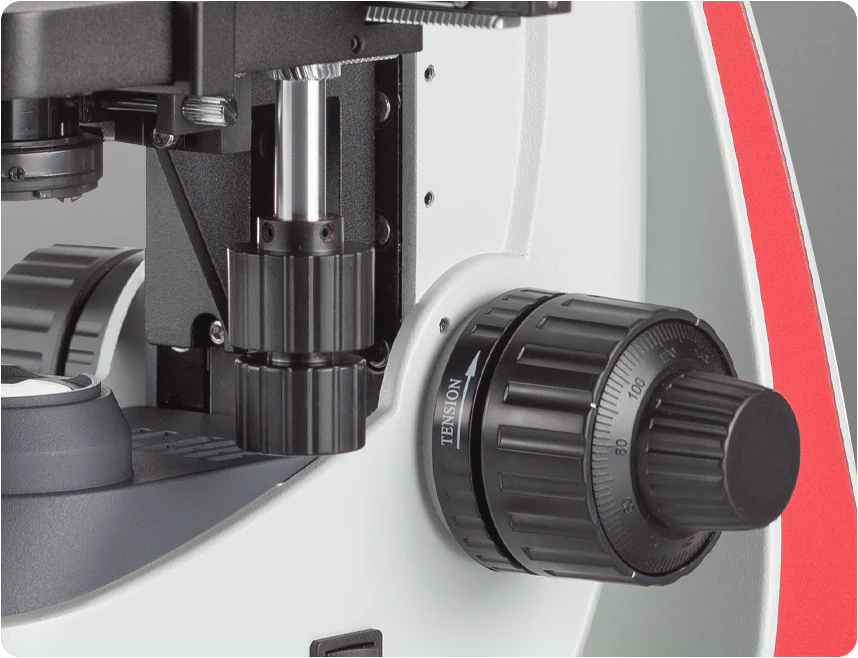

- Focusing System: Coaxial coarse & fine focus, with: 30mm total, 0.002mm fine precision — excellent for detailed specimen work.
- Stage: Double-layer mechanical — precise and stable slide positioning.
- Stage Size: 140mm x 127mm
- X-Y Translation Range: 76mm x 53mm — enables complete coverage of standard slides.
💡 Lighting and Illumination
- Condenser: Abbe, NA 1.25 with iris diaphragm — supports high-resolution imaging and light control.

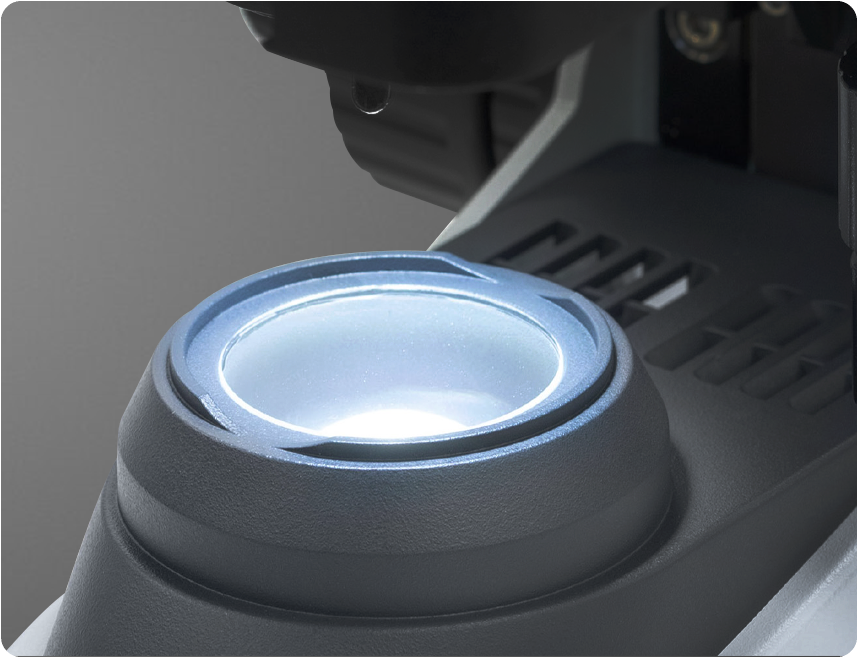

- Illumination: 3W variable-intensity LED — bright, energy-efficient, and long-lasting.
🔌 Power
- AC Input: 100–240V, 50/60Hz, 0.7–1.4A — supports global voltage.
